Heavy-Duty Hydraulic Hose Crimper
When 200 ton isn’t enough. 245 to 830 ton of force for mining R13, marine hydraulics, and industrial hose up to 6 inches. A heavy duty hydraulic hose crimper is built for the jobs standard crimpers can’t handle.
What Is a Heavy-Duty Hydraulic Crimper?
A heavy duty hydraulic hose crimper delivers 245+ ton of force — designed for large-diameter industrial hose, mining hose (R12/R13), and specialized applications that exceed the capacity of standard workshop crimpers by 2–4×.
As mining, marine, and industrial equipment grew larger in the 2000s, standard 200-ton crimpers couldn’t handle 3″+ R13 hose. Today’s P175 at 830 ton can crimp a 6″ mining hose — one of the few machines in the world that can.
Key Design Features
- Separate power unit: Machines above 280 ton use a separate hydraulic power pack (oil tank + motor + pump) for higher flow rates and faster cycling.
- C-frame option (P160C): Side-opening die area allows bent tubes and industrial assemblies that won’t fit in a standard ring frame.
- Large die range: 27 die positions on P175 (6–290 mm). Each die weighs 5–15 kg — die changes require a cart or hoist.
Source: Hydraulic Press — Wikipedia
Key Parameters — 4 Representative Models
| Parameter | TRC120L | P140 | P160 | P175 |
|---|---|---|---|---|
| Max Force | 245 ton | 320 ton | 350 ton | 830 ton |
| Hose Range | up to 2″ R13 | up to 4″ | up to 4″ 6SP | up to 6″ |
| Dies | 22 sizes | 25 sizes | 20 sizes | 27 sizes |
| Control | CNC | Manual | Manual | PLC |
| Power | Integrated | Separate | Separate | Separate |
| Weight | 250 kg | 400 kg | 520 kg | 680 kg |
By Force Range
245 Ton — TRC120L
Handles 2″ R13 and below. First “big machine” for growing shops. CNC control standard.
245 ton2″ R13350 Ton — P160
4″ hose capability. Oil & gas, shipbuilding. P160C side-opening for bent industrial tubes.
350 ton4″ 6SP
830 Ton — P175
Maximum force. Mining R13, marine, aerospace. 27 die sizes from 6 to 290 mm.
830 tonup to 6″All 9 models: TRC120L, TRC120LH, P120, P120C, P140, P160, P160C, P165, P175
Heavy-Duty Problems — Solved
“Mining hose R13 — my 200-ton crimper can’t handle it”
R13 is 4–6 wire spiral, very stiff. 200 ton is the minimum for 2″ R13. For 3″+, you need 320+ ton (P140). For 4″+, P175 at 830 ton.
Source: r/Hydraulics, common mining complaint
“Downtime costs us $10,000/hour in mining”
Mining operations can’t wait for parts shipping. Having a P160 on-site means crimping a replacement hose in 15 minutes vs 4–8 hours for a service call.
Source: Industry research — mining downtime costs
“How do I change dies on a 500 kg machine?”
Dies weigh 5–15 kg each. Most shops use a die cart or overhead hoist. P160/P175 have die storage cabinets at working height.
Source: Practical workshop concern
“My crimp diameter drifts over time”
Heavy-duty dies wear faster due to harder ferrule materials. Check crimp diameter every 5,000 crimps with calipers. Replace when drift exceeds 0.1 mm. HRC50+ dies last longest.
Source: Baidu Baike — die wear
“Can I crimp industrial pipe (not just hose)?”
P160C side-opening and P120C can crimp steel pipe fittings up to Ø42 mm. KF42 is specifically designed for steel pipe applications.
Source: TRC product specifications
Heavy-Duty vs Standard Crimper
| Factor | Heavy-Duty (245+ ton) | Standard (80–200 ton) |
|---|---|---|
| Max Hose | 6″ | 2″ |
| Force | 245–830 ton | 80–200 ton |
| Weight | 250–680 kg | 34–98 kg |
| Power | Separate unit (5.5 kW) | Integrated (2.2 kW) |
| Industries | Mining, marine, oil & gas | Workshop, construction, agriculture |
| Cost | $5,000–25,000 | $500–5,000 |
Where 200 Ton Isn’t Enough
⛏️ Mining
R13 hose repair. Downtime costs $3,000+/hour. On-site heavy duty hydraulic hose crimper saves $25,000+ per incident.
🚢 Marine & Shipbuilding
Ship hydraulic systems. Dock fees $5,000–50,000/day. Fast on-board repair is critical.
🛢️ Oil & Gas
High-pressure hydraulic assemblies. Safety-critical crimping with 4″+ hose and API-certified fittings.
🏭 Production Assembly
OEM hose assembly lines. CNC-controlled heavy duty hydraulic hose crimpers deliver ±0.02 mm repeatability at 300+ crimps/day.

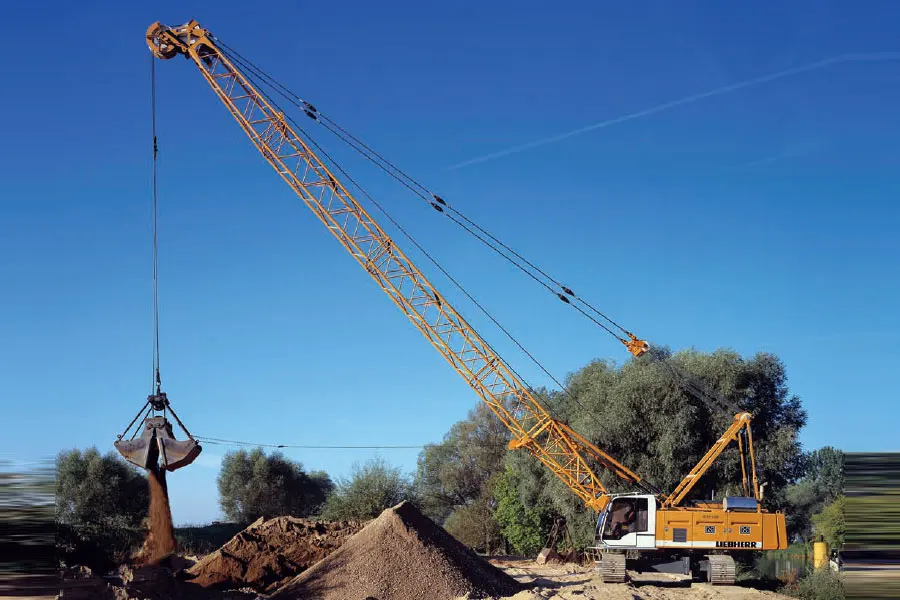

🏗️ Heavy Construction
Large excavators, pile drivers, and cranes. 3″–4″ hose crimping on demand. Downtime costs $2,000–5,000/hour.
⚙️ Industrial Equipment
Steel mills, press brakes, injection molding. 4″–6″ return-line hose and high-pressure circuits.
Related Guides
Hydraulic Hose Crimping Machine Buying Guide
7 types compared — from manual to 830-ton heavy-duty. Cost and capability analysis for every budget.
Read GuideMining Hydraulic Hose Repair Guide
R13 hose repair procedures, downtime cost analysis, and equipment recommendations for mining operations.
Read GuideAlso see: Electric Hydraulic Crimper Hub | Dies & Accessories Hub
Frequently Asked Questions
What’s the largest hose I can crimp?
P175: 6″ hydraulic hose. P160: 4″ 6SP. TRC120L: 2″ R13.
Do I need a separate pump?
Yes. P120 and above use separate hydraulic power units for the higher flow rates needed by large cylinders.
How much do heavy-duty crimpers weigh?
250–680 kg. These are floor-standing machines that need a concrete base and adequate floor space.
Can I crimp mining R13 hose?
Yes. TRC120L handles 2″ R13. P140/P160 handle larger R13 sizes up to 4″. P175 goes up to 6″.
What die sizes are available?
P175: 27 die positions from 6 mm to 290 mm. Each model has a specific die series. See Dies & Accessories for full compatibility.
Large-Diameter Hose? Mining? Marine?
TRC heavy-duty crimpers: 9 models, 245–830 ton. From R13 mining hose to 6″ industrial assemblies.
