Hydraulic Hose Crimper — P16HP Series
P16HP Hydraulic Hose Crimper
95TON max crimping force for repair workshops and field service. Hand pump operated — no electricity needed. Telescopic lever saves 30% effort. 10 precision dies included.
95
TON Force
955
kN
10
Dies Included
26
kg Net Weight
Technical Specifications
TRC-P16HP Hydraulic Hose Crimper Specifications
TRC-P16HP is a portable hand pump hydraulic crimping machine designed for hydraulic hose repair workshops and field service applications. No electricity required — delivers 95TON crimping force for 1″ 2SP/4SP hoses from 10–45mm diameter.
⚙️
95 TON
Max Crimping Force
955 kN
📏
10–45 mm
Crimping Diameter
0.39 – 1.77 inch
🔧
Hand Pump
Power Source
No Electricity Required
♻️
30%
Effort Saved
Telescopic Lever Design
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model | TRC-P16HP / P16HP Series | Max Opening (with dies) | +20 mm |
| Control | Manual / Hand Pump | Max Opening (no dies) | 59 mm |
| Max Crimping Force | 955 kN / 95 TON | Master Die D / L | Ø 39 / 64 mm |
| Hose Size ID | 1″ 2SP / 4SP | Die Series | P16 (10 sizes) |

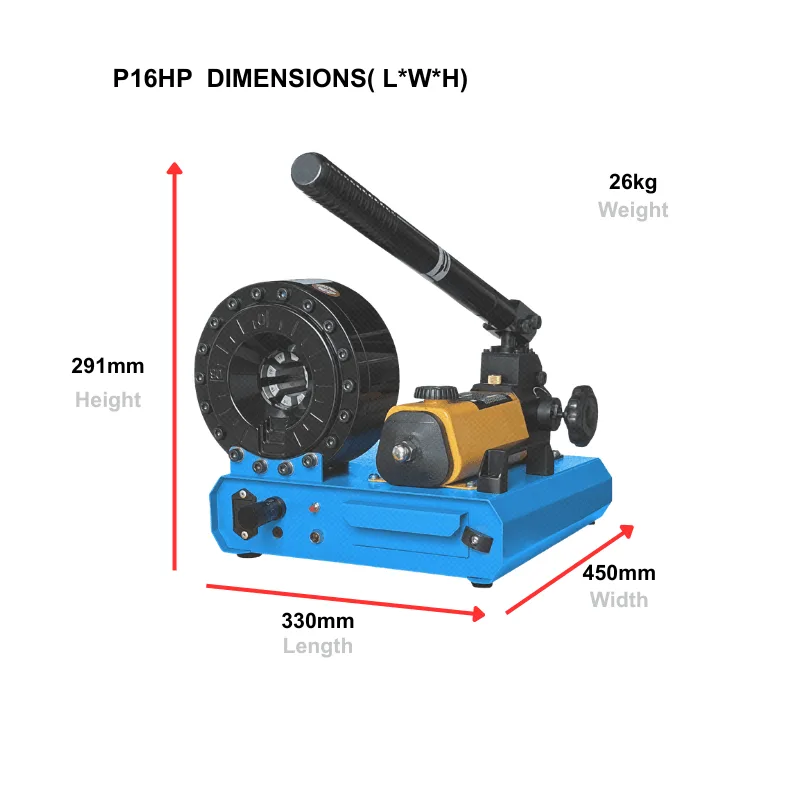

| Crimping Range | 10 – 45 mm | Dimensions (L×W×H) | 330 × 450 × 291 mm |
| Net Weight | 26 kg | Gross Weight | 34 kg |
| Machine Dimensions | 330 × 450 × 291 mm | Package Size | 475 × 430 × 410 mm |
Industries & Applications
Built for the Jobs That Can’t Wait
TRC-P16HP — wherever hydraulic hose failures happen, this machine goes there.
🚛
Mobile Service
Hand pump operated — no power outlet needed. 95TON force anywhere, anytime.
🔧
Repair Workshops
On-demand hose assembly. Quick die swaps for mixed jobs throughout the day.
🌾
Agriculture
Tractor hydraulics, sprayer lines, irrigation pump fittings. Works in mud and dust.
🏗️
Construction
Excavator hoses, concrete pump lines, loader attachments. Heavy equipment doesn’t wait.
🚜
Truck & Trailer
Air brakes, hydraulic lift gates, dump trucks. Fits most standard service bays.
⛏️
Mining
Mining equipment hydraulics, processing machinery. Rugged reliability in harsh conditions.
🏭
Manufacturing
Production line fluid assemblies, press machinery. Consistent repeatability for serial work.
🚢
Marine
Marine hydraulic systems, dock equipment. Compact design fits engine room spaces.
Challenges & Solutions
Why Shops Choose TRC-P16HP
Real problems in hydraulic hose service — and how TRC-P16HP solves each one.
Field Jobs Without Power
Technicians face hose failures at remote sites — no electricity means no way to crimp on the spot.
✓
Hand pump operation — works anywhere. 95TON force on pure manual power.
Slow Die Changeover
Mixed-size jobs waste hours on die swaps — wrong dies, seized fittings, lost productivity.
✓
10 P16 dies. Tool-free quick-swap in under 10 seconds. Covers 6–38 mm range.
Crimp Accuracy Issues
Open-head crimpers drift during operation — inconsistent fits, leaked connections, failed assemblies.
✓
Closed-head system with ±0.03 mm repeatability. Consistent results every crimp.
Heavy Equipment in Tight Spaces
Full-size crimpers won’t fit through shop doors or into confined service bays.
✓
330 × 450 × 291 mm footprint. 26 kg. Fits standard doorways and mobile trucks.
Multiple Hose Specs
One machine can’t handle the mix — 1-wire, 2-wire, 4-wire, spiral hoses all need different pressure.
✓
955 kN / 95TON handles 1″ 2SP and most industrial hose types. 10 dies cover the range.
Downtime Costs Money
Every hour a machine is down costs more than the repair. Reliability isn’t optional.
✓
Fast pump Enerpac system. 2-year warranty. Service centers in EU, NA and SEA.
Safety Concerns
Open-head machines with foot pedals create pinch hazards. Operators need confidence.
✓
Two-hand operation interlock. Auto-relief valve. Enerpac engineered safety system.
Limited Budget
Electric crimping stations cost thousands — too much for shops with variable workload.
✓
Manual design — no motor to fail. Lower price, lower running cost. Built to last decades.
Related Products
More Solutions for
View All Products →
More Solutions for
Hydraulic Hose Crimping
From portable manual crimpers to heavy-duty industrial machines, TRC offers a complete product line covering 10-140mm crimping range. Each unit is engineered for precision, durability, and global certifications.
⭐ Current Model
Portable Manual Series
View Details →
TRC-P16HP
Hand Pump Hydraulic Crimper
Force95 TON / 955 kN
Range10 – 45 mm
Hose1″ 2SP / 4SP
DiesP16 Series (10 sizes)
Weight26 kg (NW)
⚡ Fast Pump
Portable Manual Series
View Details →
TRC-P16HPZ
Enerpac Fast Pump Version
Force95 TON / 955 kN
Range10 – 45 mm
PumpEnerpac Fast Pump
Weight24 kg (NW)
🔋 Dual Power
Portable & Workshop
View Details →
TRC-P18XL
DC18V + AC110V/220V Dual Power
Force95 TON / 950 kN
Range10 – 54 mm
Hose1″ 4SP
Weight35 kg (NW)
💪 High Force
High Pressure Series
View Details →
TRC-P20LHP
185TON Heavy-Duty Manual
Force185 TON / 1850 kN
Range6 – 54 mm
Hose1″ 4SP
Weight35 kg (NW)
FAQ
Frequently Asked Questions
Everything you need to know about the TRC-P16HP before you buy.
What hose sizes can the TRC-P16HP crimp?
The TRC-P16HP crimps hoses from 6 mm to 45 mm diameter (1/4″ to 1.77″). It handles 1-inch 2SP and 4SP-4SH spiral hoses. With 10 P16 dies included covering the 6–38 mm range, it covers most common repair shop hose sizes.
Does it need electricity or compressed air?
No. The TRC-P16HP is purely manual — hand pump operated with an Enerpac Fast Pump system. This makes it ideal for field service, remote sites, and anywhere without reliable power. The telescopic lever design saves 30% operator effort.
How much force can it generate?
95 TON (955 kN) of max crimping force. That’s sufficient for all 1-inch hydraulic hoses including 2-wire and 4-wire spiral types. System pressure is rated at 31.5 MPa.
How accurate is the crimp?
The closed-head system delivers ±0.03 mm repeatability — consistent crimp quality across every hose assembly. This is critical for preventing leaks and ensuring fitting integrity on high-pressure hydraulic lines.
How long does die changeover take?
Under 10 seconds. The P16 die series uses a tool-free quick-change system. Dies are color-coded or numbered and swap directly without any wrenches or additional tools.
What dies come included?
10 dies come standard: P16/06, P16/08, P16/10, P16/12, P16/14, P16/16, P16/19, P16/23, P16/27, P16/31. These cover the 6–38 mm crimping range. Additional dies available for special sizes.
Is it portable enough for mobile service?
Yes. At 26 kg net weight and dimensions of 330 × 450 × 291 mm, it fits through standard workshop doorways and can be mounted in a service truck. Optional mobile stand available.
What warranty does it come with?
2-year full warranty covering parts and labor. Service centers available in Europe, North America, and Southeast Asia. Enerpac pump components are backed by their global service network.
Still have questions? Our hydraulics team is ready to help.
