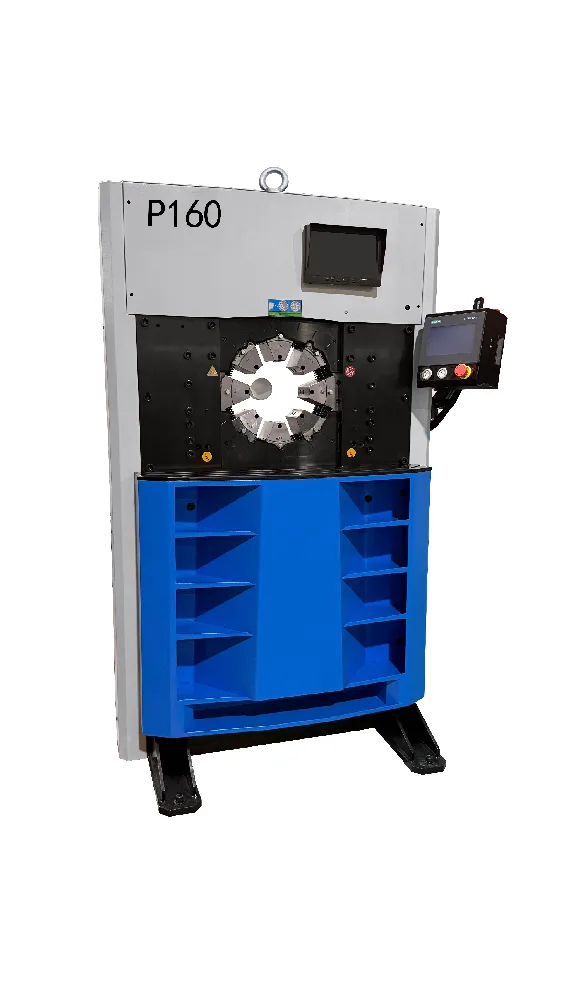

Heavy Duty Industrial Hydraulic Crimper TRC-P160 — 200TON CNC Workshop | TRCrimp
The TRC-P160 industrial hydraulic crimper delivers 200TON / 2000kN with a built-in CNC system for step crimping, quality reports, and data save. Handles 10–87mm hose up to 2″ 4SH in semi-auto or auto mode. This industrial hydraulic crimper is the workshop production choice for operators who need traceable crimp quality.
Description
| Max Crimping Dia (mm/inch) | 6-202 / 0.24-7.95 |
| Max Crimping Force (kN/Ton) | 3500 / 350 |
| Hose Size ID (Max) | 6″ |
| Cycle Time 10mm (s) | 2.3 |
| Max Opening With/Without Dies | +125mm / 345mm |
| Master Die D / L (mm) | 220 / 116 |
| Motor Power (kW/HP) | 6.5 / 8.8 |
| Oil Tank Volume (L) | 135 |
| Motor Voltage (V) Tri | 200/220/380/400/440 |
| Machine (mm/inch) | 940x860x1784 / 37×33.9×70.2 |
| M. Package (mm/inch) | 990x995x1874 / 38.9×39.2×73.8 |
| Station (mm/inch) | 713x705x1060 / 28×27.8×41.7 |
| S. Package (mm/inch) | 800x780x1340 / 31.5×30.7×52.8 |
| Machine N.W. / G.W. | 2020 / 2070 |
| Station N.W. / G.W. | 182 / 212 |
| Die No. | Range (mm) | L (mm) |
|---|---|---|
| P32 Series (Standard) | ||
| P32/14 | 14.0 – 16.0 | 55 |
| P32/51 | 51.0 – 57.0 | 90 |
| P160 Series (Industrial Large) | ||
| P160/84 | 84.0 – 92.0 | 120 |
| P160/190* | 190.0 – 202.0 | 120 |
The TRC-P160 industrial hydraulic crimper comes with a built-in CNC system — step crimping, quality reports, and data save — giving workshop operators the traceability that ISO-certified facilities demand. At 200TON / 2000kN, it handles hose from 10mm to 87mm (2″ 4SH) with a 132mm max opening without dies.
This industrial hydraulic crimper operates in semi-auto or full auto mode, switching between production runs and one-off jobs. The QuickChange-tool system and 18 standard P32 dies (10–87mm) cover the full workshop hose range. At 305kg with a 650×470×1400mm footprint, the P160 stays fixed in the workshop.
The 3.7kW tri motor handles 200/220/380/440V, while the 4kW mono motor covers 220/230/240V single-phase — matching any workshop power setup. The 42L oil tank maintains stable hydraulic pressure throughout the workday.
With a 3.3-second cycle (tri motor), this industrial hydraulic crimper handles high-volume workshop production without sacrificing crimp consistency.
