Powerful Hydraulic Hose Press TRC-P175 — 830TON Flagship 600mm Large Bore | TRCrimp
The TRC-P175 hydraulic hose press delivers 830TON / 8300kN — the highest force in the TRC industrial lineup. Handles hose up to 15″ diameter (600mm standard, 640mm non-standard) with extra-long master dies for single-stroke long tube and pipe forming. This hydraulic hose press is the flagship production machine for the largest industrial hose assemblies.
Description
| Max Crimping Dia (mm/inch) | 350 / 12.6 |
| Max Crimping Force (kN/Tonnage) | 8300 / 830 |
| Hose Size ID (Max) | 10″ |
| Closing / Crimping Speed | 7 / 1.5 mm/sec |
| Cycle Time 10mm (s) | 3.2 |
| Max Opening With/Without Dies | +155mm / 500mm |
| Master Die D / L (mm) | 350 / 500 |
| Motor Power (kW/HP) | 11 / 15 |
| Oil Tank Volume / Oil Req. | 270L / 300L |
| Voltage (V) Tri-Phase | 200/220/380/400/440 |
| Machine (mm/inch) | 1060x860x1825 / 41.7×33.9×71.9 |
| M. Package (mm/inch) | 1110x995x1915 / 43.7×39.2×75.4 |
| Station (mm/inch) | 782x753x1060 / 30.8×29.6×41.0 |
| S. Package (mm/inch) | 869x780x1340 / 34.2×32.6×52.8 |
| Machine N.W. / G.W. | 4455 / 4505 |
| Station N.W. / G.W. | 305 / 355 |
| Die Series | Range (mm) | Length (mm) |
|---|---|---|
| P32 & P160 Series (Examples) | ||
| P32/14 | 14.0 – 16.0 | 55 |
| P160/84 | 84.0 – 92.0 | 120 |
| P175 Series (Heavy Duty) | ||
| P175/202 | 205.0 – 220.0 | 220 |
| P175/290* | 290.0 – 320.0 | 220 |

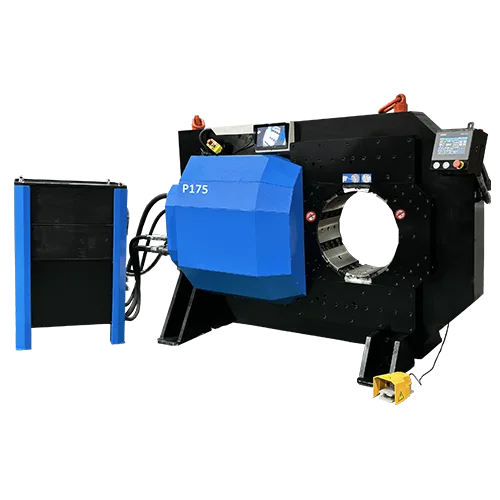

What Is the TRC-P175 Hydraulic Hose Press?
The TRC-P175 hydraulic hose press is the flagship model in the TRC industrial range — built to process the largest hose assemblies in the catalog. With 830TON / 8300kN of crimping force, it handles hose up to 15″ diameter (600mm standard, 640mm non-standard), making it the go-to hydraulic hose press for dockside, marine, offshore, and heavy industrial production environments.
830TON Force for Industrial Hydraulic Hose Press Applications
The P175 hydraulic hose press delivers 830TON at a 3.2-second cycle at 10mm. Closing speed is 7mm/s with a 1.5mm/s crimping speed — consistent, controlled pressure across every cycle. The 11kW / 15HP motor drives tri-phase 200/220/380/400/440V power, covering global industrial voltage requirements.
CNC Control for Precision Hydraulic Hose Press Workflows
The P175 hydraulic hose press features full CNC control — pressure management, step crimping, quality reports, and data save — providing full production traceability for ISO-certified operations. The separated power pack design keeps the hydraulic circuit isolated from vibration and heat, extending machine life on the toughest production schedules.
Extra-Long Dies for Industrial Hydraulic Hose Press Range
Three die series cover the full industrial range: P32 (standard 6–87mm), P160 (87–202mm), and P175 (205–320mm) with extra-long master dies purpose-built for single-stroke long tube and pipe forming. The QuickChange-tool system minimizes die changeover time during hydraulic hose press production runs.
