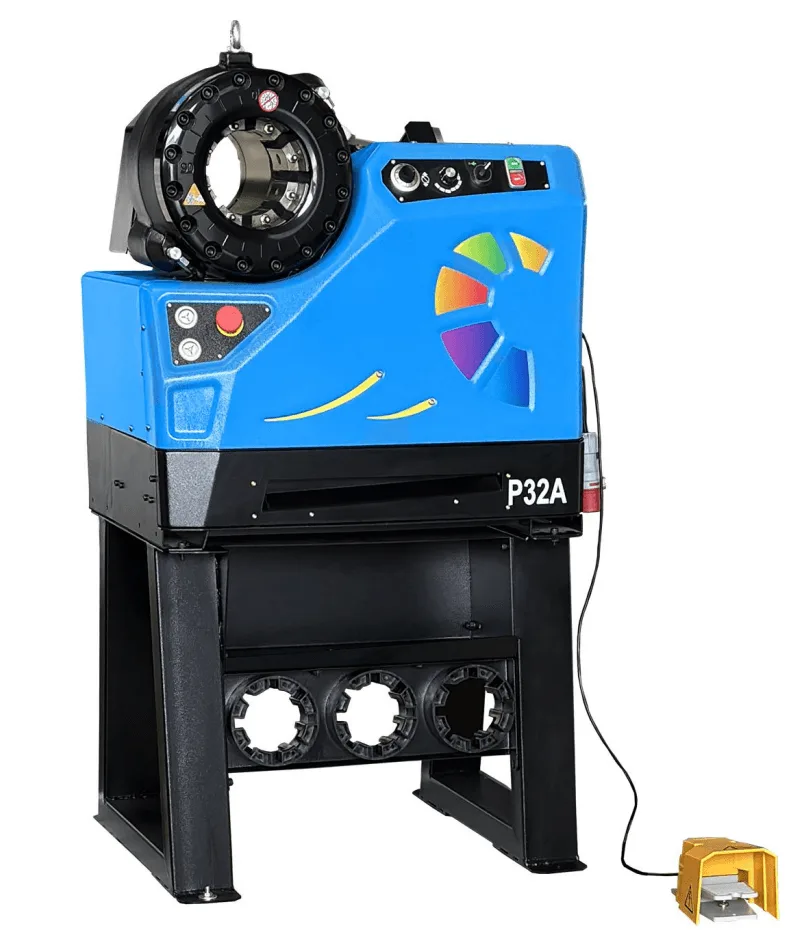

TRC-P32A Hydraulic Hose Crimping Machine — 200TON Semi-Auto/Auto Production | TRCrimp
The TRC-P32A is a professional <strong>hydraulic hose crimping machine</strong> designed for high-volume industrial workshops. Delivering 200TON / 2000kN of force, it handles 10–87mm hose diameters up to 2″ 4SH with semi-auto or full-auto control modes. With 700–850 pieces per hour output and the QuickChange-tool die system, the P32A is the workhorse of industrial hose assembly production.
Description
| Max Crimping Dia (mm/inch) | 10-87 / 0.39-3.42 |
| Max. Crimping Force (kN/Tonnage) | 2000 / 200 |
| Cycle Time 10mm (s) Tri/Mono | 3.3 / 5.5 |
| Hose Size ID (inches) | 2″ |
| Dies Set / Max Opening | P32 / +33mm |
| Master Die D/L (mm) | 99 / 80 |
| Motor Power (kW/HP) | 2.2kW / 2.95HP |
| Oil Tank Volume (L) | 40 L |
| Voltage (Tri / Mono) | 380V / 220V Options |
| Machine (mm/inch) | 760x540x790 / 29.9×21.3×31.1″ |
| Package (mm/inch) | 960x740x990 / 37.8×29.1×39.0″ |
| Net Weight (N.W.) | Refer to Quotation |
| Gross Weight (G.W.) | Based on Config |
| Die Set No | Range (mm) | ID | L (mm) |
|---|---|---|---|
| P32/16 | 16.0-19.0 | 16 | 55 |
| P32/22 | 22.0-26.0 | 22 | 70 |
| P32/30 | 30.0-34.0 | 30 | 70 |
| P32/51 | 51.0-57.0 | 51 | 90 |
| P32/63 | 63.0-69.0 | 63 | 100 |
| P32/78* | 78.0-87.0 | 78 | 100 |
What Is the TRC-P32A Hydraulic Hose Crimping Machine?
The TRC-P32A is a high-output hydraulic hose crimping machine built for industrial workshop environments. With 200TON / 2000kN of force and flexible semi-auto or full-auto control modes, it handles 10–87mm hose diameters — covering 1/4″ to 2″ 4SH hydraulic hose — at 700–850 pieces per hour for high-volume production workflows.
Semi-Auto and Auto Modes for Industrial Hose Crimping
The P32A hydraulic hose crimping machine operates in semi-auto or full-auto mode, allowing operators to match the control style to their production workflow. Combined with a 3.7–4kW motor and 42L integrated oil tank, it maintains consistent 200TON force delivery across continuous production runs of hose crimping machine operations.
Die Compatibility and QuickChange on This Hydraulic Hose Crimping Machine
The P32A uses the P32 die series with 19 standard sizes covering 10–87mm hose diameters. The QuickChange-tool system enables rapid die changes between hose sizes without tools, minimizing downtime during hydraulic hose crimping machine production changeovers.
Industrial Build for Workshop Hydraulic Hose Crimping
Rated for industrial workshops and production facilities, the P32A operates on tri-phase (200/220/380/400/440V) or single-phase (220/230/240V) power for global deployment. Its 840×600×1400mm footprint and 286kg weight provide a stable working platform for precise hydraulic hose crimping machine operations. Foot pedal support enables hands-free control during extended production shifts.
Applications for the TRC-P32A Hydraulic Hose Crimping Machine
This production hydraulic hose crimping machine is purpose-built for:
- High-volume industrial hose assembly workshops
- Production of 1/4″ to 2″ 4SH hydraulic hose
- Manufacturing environments requiring semi-auto or full-auto modes
- Industrial facilities with global voltage requirements
