Precision CNC Hydraulic Crimper TRC-P20D — 137TON Step Crimping Quality Reports | TRCrimp
The TRC-P20D CNC hydraulic crimper delivers 137TON / 1370kN with full CNC control — step crimping, quality reports, data save, and pressure control. Handles 10–61mm hose up to 1-1/2″ 4-spiral. Semi-auto and auto modes with foot pedal. This CNC hydraulic crimper is built for workshops that demand traceable, repeatable crimp quality.
Description
| Max Crimping Dia (mm/inch) | 10-61 / 0.39-2.40 |
| Max. Crimping Force (kN/Tonnage) | 1370 / 137 |
| Cycle Time 10mm (s) | 3.6 |
| Hose Size ID (inches) | 1 1/2 |
| Dies Set Series / Max Opening | P20 / +25mm |
| Master Die D/L (mm) | 84 / 80 |
| Motor Power (kW/HP) / Oil Tank | 3kW(4HP) / 42L |
| Crimping Per Hour | 600 / 850 |
| Voltage (Tri / Mono) | 380V / 220V Options |
| Machine Size | 650x470x1400 mm / 25.6×18.5×55.1″ |
| Package Size | 880x880x890 mm / 34.6×34.6×35″ |
| Net Weight (N.W.) | 286 KG |
| Gross Weight (G.W.) | 310 KG |
| Die Set No | Range (mm) | ID | L (mm) |
|---|---|---|---|
| P20/14 | 14.0-16.0 | 14 | 55 |
| P20/19 | 19.0-23.0 | 19 | 55 |
| P20/27 | 27.0-31.0 | 27 | 70 |
| P20/36 | 36.0-41.0 | 36 | 75 |
| P20/47 | 47.0-52.0 | 47 | 85 |

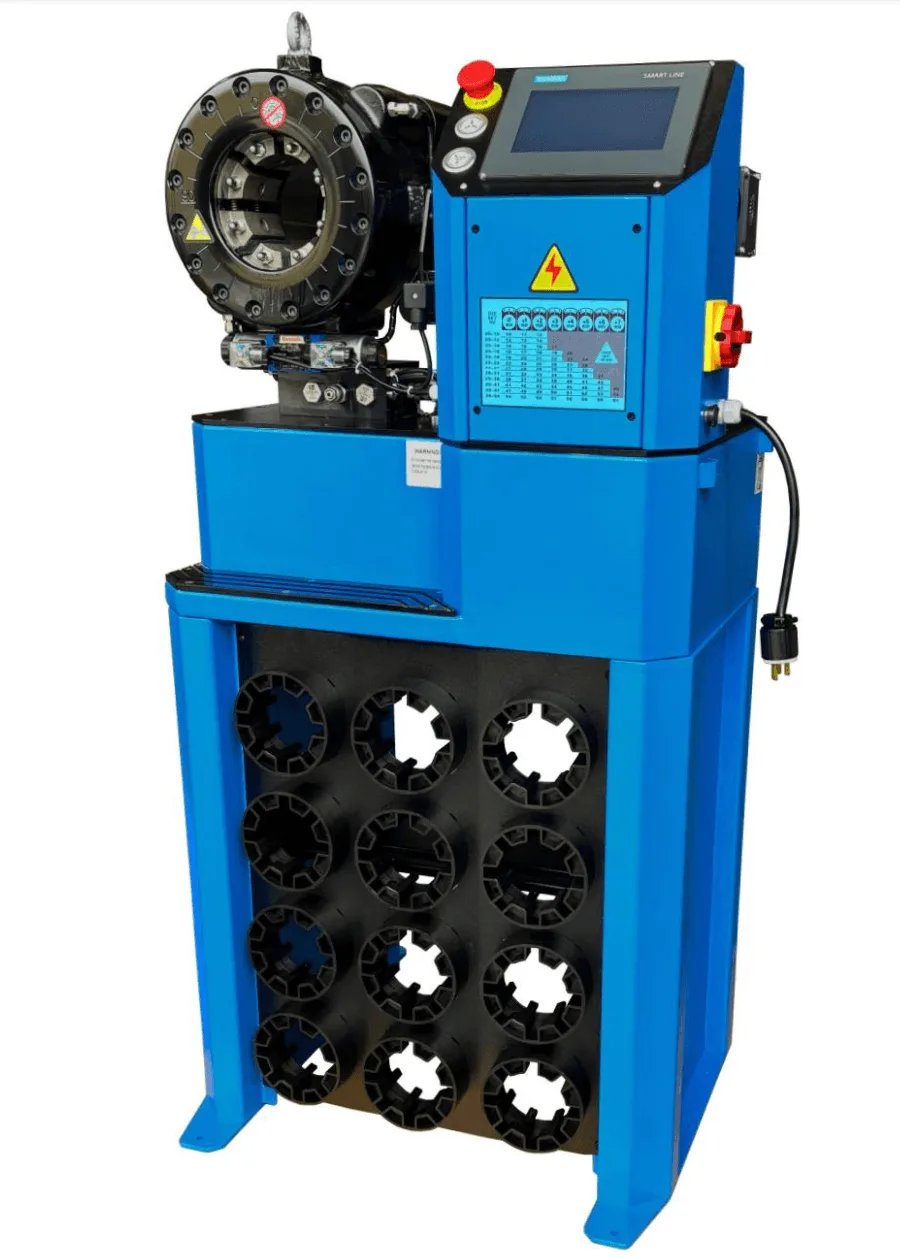

The TRC-P20D CNC hydraulic crimper brings full numeric control to workshop hose production. Step crimping lets operators program precise pressure stages for different fitting types. Quality reports capture every crimp cycle — batch, date, pressure, result — giving ISO-certified workshops the data they need for compliance documentation.
At 137TON / 1370kN with a 3.6-second cycle, this CNC hydraulic crimper handles hose from 10mm to 61mm (1-1/2″ 4-spiral) in semi-auto or full auto mode. The 109mm max opening without dies accommodates a wide range of fitting geometries.
The 42L oil tank maintains consistent hydraulic pressure throughout production runs, while the QuickChange-tool system enables fast die changes between hose sizes. Speed change control lets operators tune the crimping rate for different materials and fitting combinations.
Three control modes — CNC, semi-auto, and auto — cover everything from one-off custom jobs to high-volume continuous production. This CNC hydraulic crimper is the upgrade path for workshops outgrowing manual or semi-auto crimpers.
