Hydraulic Hose Press TRC-P165 — 500TON Industrial 6-Inch Large Bore | TRCrimp
The TRC-P165 hydraulic hose press delivers 500TON / 5000kN of force for industrial workshop hose production. Handles hose from 6mm to 202mm (6″ 4-spiral) with a 345mm max opening without dies. Full CNC control with step crimping, quality reports, and data save — built for large bore hydraulic hose press workflows.
Description
| Max Crimping Dia (mm/inch) | 6-202 / 0.24-7.95 |
| Max Crimping Force (kN/Tonnage) | 5000 / 500 |
| Hose Size ID (Max) | 6″ |
| Cycle Time 10mm (s) | 3.6 |
| Max Opening With/Without Dies | +125mm / 345mm |
| Master Die D / L (mm) | 220 / 116 |
| Motor Power (kW/HP) | 7.5 / 10.2 |
| Oil Tank Volume (L) | 135 |
| Motor Voltage (V) Tri | 200/220/380/400/440 |
| Machine (mm/inch) | 1060x860x1825 / 41.7×33.9×71.9 |
| M. Package (mm/inch) | 1110x995x1915 / 43.7×39.2×75.4 |
| Station (mm/inch) | 782x753x1060 / 30.8×29.6×41.0 |
| S. Package (mm/inch) | 869x780x1340 / 34.2×32.6×52.8 |
| Machine N.W. / G.W. | 2430 / 2480 |
| Station N.W. / G.W. | 190 / 220 |
| Die No. | Range (mm) | L (mm) |
|---|---|---|
| P32 Series (Standard) | ||
| P32/14 | 14.0 – 16.0 | 55 |
| P32/51 | 51.0 – 57.0 | 90 |
| P160 Series (Industrial Heavy) | ||
| P160/84 | 84.0 – 92.0 | 120 |
| P160/190* | 190.0 – 202.0 | 120 |

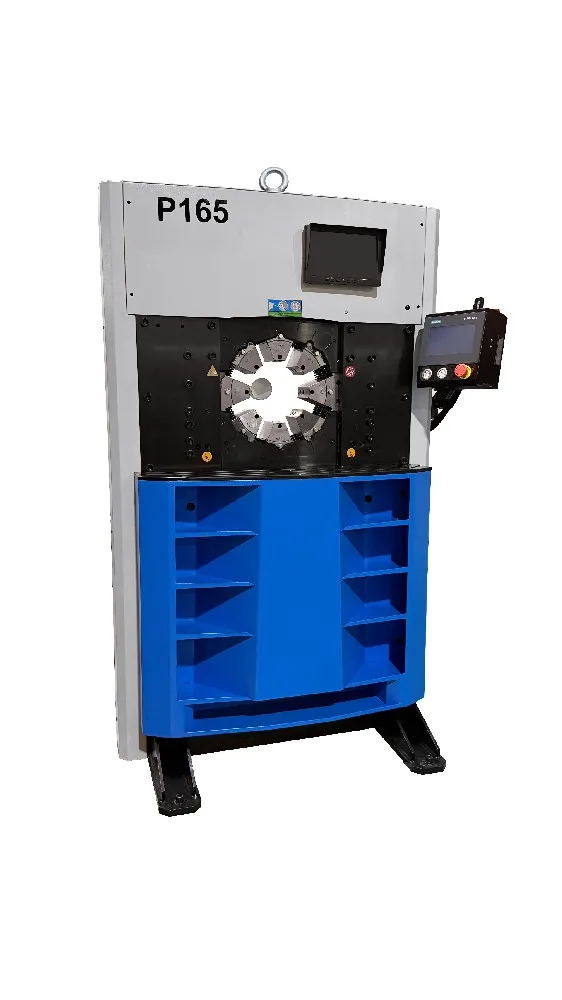

What Is the TRC-P165 Hydraulic Hose Press?
The TRC-P165 hydraulic hose press is an industrial crimping machine built for workshops processing large bore hose assemblies. Delivering 500TON / 5000kN of force, it handles hose from 6mm to 202mm (6″ 4-spiral) — covering the most demanding sizes in one machine. The 345mm max opening without dies accommodates oversized fittings that standard crimpers cannot handle.
500TON Force for Large Bore Hose Press Applications
This hydraulic hose press delivers 500TON at a 3.6-second cycle. The 7.5kW / 10.2HP motor drives consistent pressure across production runs. Tri-phase 200/220/380/400/440V covers global industrial voltages — making this a versatile hydraulic hose press for factories and workshops worldwide.
CNC Control for Industrial Hose Press Workflows
The P165 hydraulic hose press features full CNC control — correction offset, step crimping, quality reports, and data save. These functions provide the repeatability and traceability that ISO-certified facilities demand from their hose press equipment.
Extended Die Range for Hose Press Production
This hydraulic hose press uses P32 dies (10–87mm) and P165 extended dies (87–203mm) — the widest industrial range in the TRC catalog. The QuickChange-tool system enables fast die changes between hose sizes during production runs.
Applications for the TRC-P165 Hydraulic Hose Press
This hydraulic hose press is built for industrial workshop large bore hose production, manufacturing 6″ 4-spiral hydraulic assemblies, marine and offshore hose processing, and ISO-certified facilities requiring traceable quality. At 2430kg with a 1060×860×1825mm footprint, the P165 is a fixed-installation production machine.
