Professional Hose Crimping Machine TRC-P22 — 137TON Adjustable Opening Workshop | TRCrimp
The TRC-P22 hose crimping machine delivers 137TON / 1370kN with adjustable crimping hold time and adjustable max opening. Handles 10–61mm hose up to 1-1/2″ 4-spiral with semi-auto or auto operation. This hose crimping machine is built for workshops that need ergonomic design and adjustable crimp control.
Description
| Max Crimping Dia (mm/inch) | 10-61 / 0.39-2.40 |
| Max. Crimping Force (kN/Tonnage) | 1370 / 137 |
| Cycle Time 10mm (s) | 3.6 |
| Hose Size ID (inches) | 1 1/2 (4SP) |
| Dies Set Series / Max Opening | P20 / +25mm |
| Master Die D/L (mm) | 84 / 80 |
| Motor (kW/HP) / Oil Tank | 3kW(4HP) / 32L |
| Crimping Per Hour | 600 / 850 |
| Voltage (Tri / Mono) | 380V / 220V Options |
| Machine Size | 780x560x1250 mm / 30.7×22.1×49.2″ |
| Package Size | 880x800x1420 mm / 34.7×31.5×55.9″ |
| Net Weight (N.W.) | 245 KG |
| Gross Weight (G.W.) | 275 KG |
| Die Set No | Range (mm) | ID | L (mm) |
|---|---|---|---|
| P20/14 | 14.0-16.0 | 14 | 55 |
| P20/19 | 19.0-23.0 | 19 | 55 |
| P20/27 | 27.0-31.0 | 27 | 70 |
| P20/36 | 36.0-41.0 | 36 | 75 |
| P20/47 | 47.0-54.0 | 47 | 85 |

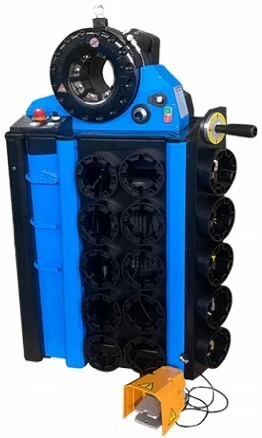

The TRC-P22 hose crimping machine stands out with its ergonomic working height and adjustable crimping settings — operators can fine-tune both the hold time and max opening for different fitting types. At 137TON / 1370kN, it handles hose from 10mm to 61mm (1-1/2″ 4-spiral) with a 109mm max opening without dies.
Semi-auto and auto modes cover both one-off jobs and production runs. The foot pedal leaves both hands free for positioning hose and fittings, and the QuickChange-tool system makes die changes fast when switching between hose sizes on the hose crimping machine.
Integrated design with die racks keeps the workspace organized. The 12 standard P20 dies (10–67mm) cover the most common workshop hose sizes. At 245kg with an 780×560×1250mm footprint, the P22 stays fixed in the workshop.
The 3kW / 4HP motor handles both tri-phase (200/220/380/440V) and mono-phase (110/115/220/230/240V) power — this hose crimping machine adapts to whatever power configuration the workshop has.
