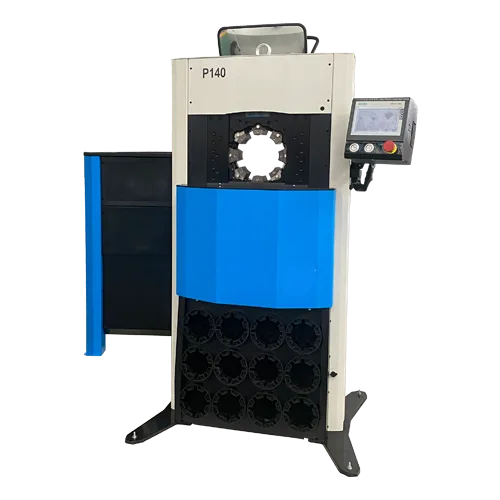

TRC-P140 Hydraulic Hose Crimper — 320TON CNC High Pressure | TRCrimp
The TRC-P140 is a professional hydraulic hose crimper built for industrial high-pressure hose production. Delivering 320TON / 3200kN of force through CNC precision control, it handles 6–140mm hose diameters — from 2-1/2″ 4-spiral to 4″ industrial hose — with a 1.5-second cycle and 2400 pcs/hour output.
Description
| Max Crimping Dia (mm/inch) | 6-220 / 0.24-8.66 |
| Max Crimping Force (kN/Ton) | 3200 / 320 |
| Hose Size (Hydraulic/Industrial) | 2 1/2″ (4SH) / 4″ |
| Cycle Time 10mm (s) / Hour | 1.5 / 2400 |
| Max Opening With/Without Dies | +82mm / 222mm |
| Motor Power (kW/HP) | 7.5 / 10.5 |
| Oil Tank Volume (L) | 120 |
| Voltage (V) Tri-Phase | 200/220/380/400/440 |
| Machine (mm/inch) | 1050x810x1800 / 41.3×31.9×70.9 |
| M. Package (mm/inch) | 1105x945x1890 / 43.5×37.2×74.4 |
| Station (mm/inch) | 870x650x1060 / 34.3×25.6×41.7 |
| S. Package (mm/inch) | 955x725x1340 / 37.6×28.5×52.8 |
| Machine N.W. / G.W. | 980 / 1035 |
| Station N.W. / G.W. | 250 / 300 |
| Die No. | Range (mm) | L (mm) |
|---|---|---|
| P32 Series (Standard) | ||
| P32/14 | 14.0 – 16.0 | 55 |
| P32/51 | 51.0 – 57.0 | 90 |
| P140 Series (Industrial) | ||
| P140/100* | 100.0 – 108.0 | 110 |
| P140/132* | 132.0 – 140.0 | 110 |
What Is the TRC-P140 Hydraulic Hose Crimper?
The TRC-P140 is a high pressure hydraulic hose crimper engineered for demanding industrial environments. As part of TRCrimp’s heavy-duty production series, this 320TON machine processes the largest hydraulic hose sizes in the TRC catalog — from 2-1/2″ 4-spiral reinforcement hose to 4-inch industrial hose — at speeds of up to 2400 hose assemblies per hour.
CNC Control for Precision Industrial Crimping
The P140’s CNC control system manages hydraulic hose crimping force, pressure hold time, and crimping speed with digital precision. Features include correction offset, step crimping for sensitive fittings, quality report generation, and data save — providing full production traceability for ISO-certified workshops and industrial quality management systems.
Speed and Output of an Industrial Hydraulic Hose Crimper
A 1.5-second crimp cycle makes the P140 one of the fastest hydraulic hose crimper machines in its class. Combined with a 120L oil tank and 7.5kW motor, it maintains consistent 320TON force delivery under continuous production workloads. The electric backstop and foot pedal enable efficient hands-free operation.
Die Compatibility Across the Hydraulic Hose Crimper Range
The P140 uses the standard P32 die series for 10–87mm hose plus P140 extended dies (87–148mm), covering an unmatched 6–140mm diameter range in one machine. The QuickChange-tool system enables rapid die changes during production runs of hydraulic hose crimping.
Engineered for Harsh Industrial Environments
Rated for marine, offshore, mining, and heavy industrial applications, the P140 operates on tri-phase 200/220/380/400/440V power globally. Its 1050×810×1800mm footprint and 980kg weight provide the stability for vibration-free precision hydraulic hose crimping under the most demanding production schedules.
Applications for the TRC-P140 Hydraulic Hose Crimper
This industrial hydraulic hose crimper is purpose-built for:
- Marine hydraulic hose assembly
- Offshore platform hose production
- Mining heavy equipment repair
- High-volume industrial hose workshops processing 2-1/2″ to 4″ hydraulic hose
