Hydraulic Hose Crimper Machine TRC-P33 — 200TON Adjustable Opening Auto | TRCrimp
The TRC-P33 hydraulic hose crimper machine delivers 200TON / 2000kN with adjustable crimping hold time and adjustable max opening. Handles 10–87mm hose up to 2″ 4SH with semi-auto or auto control, producing 700–850 pcs/hour. This hydraulic hose crimper machine is the upgrade choice for workshops needing more control and throughput than the P32E.
Description
| Max Crimping Dia (mm/inch) | 10-87 / 0.39-3.42 |
| Max. Crimping Force (kN/Tonnage) | 2000 / 200 |
| Cycle Time 10mm (s) Tri/Mono | 3.3 / 5.5 |
| Hose Size ID (inches) | 2″ (4SH) |
| Max Opening With/Without Dies | +33mm / 132mm |
| Master Die D/L (mm) | 99 / 80 |
| Motor Tri/Mono (kW) | 3.7 / 4.0 |
| Oil Tank Volume (L) | 32 L |
| Crimping Per Hour | 700 / 850 |
| Machine (mm/inch) | 780x560x1280 / 30.7×22.1×50.4″ |
| Package (mm/inch) | 880x800x1420 / 34.7×31.5×55.9″ |
| Net Weight (N.W.) | 315 KG |
| Gross Weight (G.W.) | 350 KG |
| Die Set No | Range (mm) | L (mm) |
|---|---|---|
| P32/14 | 14.0 – 16.0 | 55 |
| P32/19 | 19.0 – 22.0 | 55 |
| P32/30 | 30.0 – 34.0 | 70 |
| P32/39 | 39.0 – 45.0 | 75 |
| P32/51 | 51.0 – 57.0 | 90 |
| P32/63 | 63.0 – 69.0 | 100 |
| P32/78* | 78.0 – 87.0 | 100 |

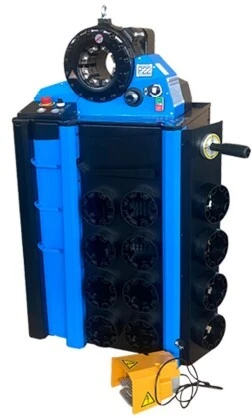

What Is the TRC-P33 Hydraulic Hose Crimper Machine?
The TRC-P33 hydraulic hose crimper machine is an industrial upgrade from the P32E — adding adjustable crimping hold time and adjustable max opening for finer control over each crimp. Delivering 200TON / 2000kN, it handles hose from 10mm to 87mm (2″ 4SH) in semi-auto or full auto mode, producing 700–850 pieces per hour.
Adjustable Opening on This Hydraulic Hose Crimper Machine
Unlike standard workshop crimpers, the P33 hydraulic hose crimper machine lets operators adjust the maximum opening to match specific fitting geometries. Combined with adjustable crimping hold time, this delivers more precise control over each crimp — critical for high-specification hydraulic assemblies that require consistent quality.
200TON Hydraulic Hose Crimper Machine for Workshop Production
This hydraulic hose crimper machine delivers 200TON at a 3.3-second cycle (tri motor) or 5.5-second cycle (mono motor). The 3.7kW tri motor covers 200/220/380/440V, while the 4kW mono motor handles 220/230/240V single-phase — matching any workshop power setup.
Auto Mode for High-Volume Hydraulic Hose Crimper Machine Production
The P33 hydraulic hose crimper machine switches between semi-auto and full auto modes. Auto mode handles continuous production runs with consistent quality, while semi-auto suits one-off jobs and complex fittings. The 32L oil tank maintains stable hydraulic pressure throughout the workday.
Applications for the TRC-P33 Hydraulic Hose Crimper Machine
This hydraulic hose crimper machine is built for high-volume industrial hose workshops, workshops requiring adjustable crimp quality control, auto and truck hydraulic hose assembly, and small to medium production runs with auto mode.
