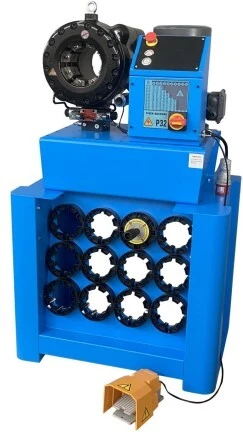

Heavy Duty Hydraulic Hose Crimper Machine TRC-P32 — 200TON 10-87mm Workshop | TRCrimp
The TRC-P32 hydraulic hose crimper machine delivers 200TON / 2000kN for workshop hose production. Handles 10–87mm hose up to 2″ 4SH with 18 standard P32 dies covering the full range. 700–850 pcs/hour throughput, semi-auto operation. This hydraulic hose crimper machine is the core workshop machine for industrial hose shops.
Description
| Max Crimping Dia (mm/inch) | 10-87 / 0.39-3.42 |
| Max. Crimping Force (kN/Tonnage) | 2000 / 200 |
| Hose Size ID (4SH / 6SH) | 2″ / 1 1/2″ |
| Cycle Time 10mm (s) / Max Opening | 7.5s / +33mm |
| Master Die D/L (mm) | 99 / 80 |
| Motor (kW) 12V / 24V | 1.6 / 2.25 |
| Motor (HP) 12V / 24V | 2.1 / 3.05 |
| Oil Tank (L) / Crimping per hour | 32L / 700-850 |
| Voltage: Tri / Mono (V) | 440V max / 240V max |
| Machine (mm/inch) | 840x600x1400 / 33×23.6×55.1″ |
| Package (mm/inch) | 925x765x890 / 36.4×30.1×35″ |
| Net Weight (N.W.) | 286 KG |
| Gross Weight (G.W.) | 310 KG |
| Die Set No | Range (mm) | L (mm) |
|---|---|---|
| P32/16 | 16.0 – 19.0 | 55 |
| P32/19 | 19.0 – 22.0 | 55 |
| P32/26 | 26.0 – 30.0 | 70 |
| P32/39 | 39.0 – 45.0 | 75 |
| P32/51 | 51.0 – 57.0 | 90 |
| P32/63 | 63.0 – 69.0 | 100 |
| P32/78* | 78.0 – 87.0 | 100 |
The TRC-P32 hydraulic hose crimper machine is the core workshop production machine in the TRC lineup. Delivering 200TON / 2000kN, it handles hose from 10mm to 87mm (2″ 4SH) — the widest range of any P-series workshop crimper. The 132mm max opening without dies accommodates oversized fittings that narrower machines cannot touch.
Semi-auto operation with a 3.3-second cycle (tri motor) or 5.5-second cycle (mono motor) delivers 700–850 pieces per hour depending on hose size. The 3.7kW tri motor handles 200/220/380/440V, while the 4kW mono motor covers 220/230/240V single-phase — matching any workshop power setup.
Eighteen standard P32 dies (6–87mm) cover the complete workshop hose size range. The QuickChange-tool system makes die changes fast during production runs, and die racks keep everything organized at the workstation.
At 286kg with an 840×600×1400mm footprint and 42L oil tank, the P32 hydraulic hose crimper machine is a fixed workshop installation built for day-in, day-out industrial hose production.
