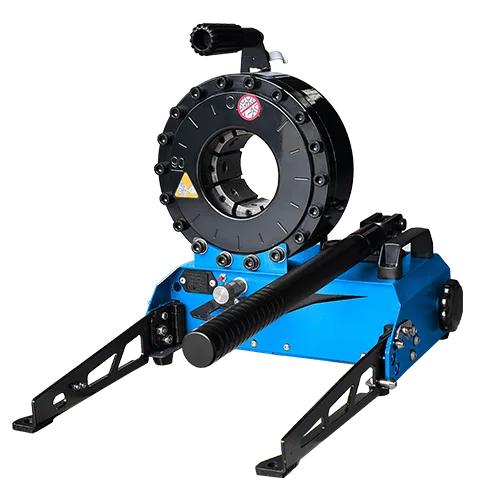

Heavy Duty Portable Hydraulic Hose Crimper TRC-P20LHP — 185TON Manual Field | TRCrimp
The TRC-P20LHP portable hydraulic hose crimper delivers 185TON / 1850kN in a 35kg frame — the heaviest force in the TRC manual portable lineup. Handles 6–54mm hose up to 1″ 4SP with a 94mm max opening. This portable hydraulic hose crimper goes wherever hydraulic hose repairs happen, from the workshop to the most remote job site.
Description
| Max Crimping Dia (mm/inch) | 6-54 / 0.24-2.13 |
| Crimping Force (kN/Tonnage) | 1850 / 185 |
| Hose Size ID (inches) | 1″ 4SP |
| Dies Set Series | P20 |
| Max. Opening (mm) | +10 (94 w/o dies) |
| Master Die D/L (mm) | 84 / 66 |
| Oil Tank Volume (L) | 0.23 |
| Machine (mm/inch) | 600x480x430 / 23.6×18.9×16.9 |
| Package (mm/inch) | 625x505x510 / 24.6×19.9×20.1 |
| Machine N.W. | 35 KG |
| Machine G.W. | 45 KG |
| DieSetNo | Range (mm) | ID (mm) | L (mm) |
| P20/06* | 6.0-14.0 | 6 | 40 |
| P20/08* | 8.0-16.0 | 8 | 40 |
| P20/10* | 10.0-18.0 | 10 | 40 |
| P20/12* | 12.0-20.0 | 12 | 40 |
| P20/14 | 14.0-22.0 | 14 | 40 |
| P20/16 | 16.0-24.0 | 16 | 40 |
| P20/19 | 19.0-27.0 | 19 | 45 |
| P20/23 | 23.0-31.0 | 23 | 50 |
| P20/27 | 27.0-35.0 | 27 | 50 |
| P20/31 | 31.0-39.0 | 31 | 60 |
| P20/36 | 36.0-44.0 | 36 | 60 |
| P20/41 | 41.0-49.0 | 41 | 65 |
| P20/47* | 47.0-54.0 | 47 | 65 |
| P20/52* | 52.0-60.0 | 52 | 65 |
What Is the TRC-P20LHP Portable Hydraulic Hose Crimper?
The TRC-P20LHP portable hydraulic hose crimper is the heavy hitter of the TRC manual portable range — 185TON of hand pump force in a 35kg frame. It handles hose from 6mm to 54mm (up to 1″ 4SP), covering the most common field hose sizes with enough power to crimp high-pressure 4-spiral hose that lighter field crimpers cannot handle.
185TON Portable Hydraulic Hose Crimper for Field Use
What sets this portable hydraulic hose crimper apart is the 185TON force rating — the same force class as many electric workshop crimpers, delivered by hand pump in the field. The fast easy manual pump design reduces operator fatigue while maintaining the no-electricity portability that field engineers need. Thirteen P20 dies (10–67mm) cover the full range of field hose sizes on this portable hydraulic hose crimper.
Mobile Hydraulic Hose Crimper for Field Service
Weighing 35kg with a 600×480×430mm footprint, the P20LHP portable hydraulic hose crimper fits in service vehicles and goes where hydraulic repairs are needed. No electricity, no compressed air — just pump and crimp. The fast pump version (P20LHPZ) is available for operators who want faster cycle times in the field.
