Heavy Duty Hydraulic Crimper TRC-P20HP — 137TON Hand Pump Manual Field | TRCrimp
The TRC-P20HP hydraulic crimper delivers 137TON / 1370kN via hand pump — no electricity, no motor, no problem. Handles 10–61mm hose up to 1-1/2″ 4-spiral with a 109mm max opening. At 78kg in a portable frame, this hydraulic crimper goes wherever hydraulic hose repairs are needed, from the workshop to the remote job site.
Description
| Max Crimping Dia (mm/inch) | 10-61 / 0.39-2.40 |
| Crimping Force (kN/ton) | 1370 / 137 |
| Hose Size ID (inches) | 1 1/2″ |
| Dies Set Series | P20 |
| Max. Opening (mm) | +25 (109 w/o dies) |
| Master Die D/L (mm) | 84 / 80 |
| Motor Power | Hand Pump |
| Machine (mm/inch) | 600x480x480 / 23.6×18.9×18.9 |
| Package (mm/inch) | 675x630x780 / 26.6×24.8×30.7 |
| Net Weight (N.W.) | 78 KG |
| Gross Weight (G.W.) | 102 KG |
| Die Set No. | Range (mm) | ID (mm) | L (mm) |
| P20/06* | 6.0 – 8.0 | 6 | 55 |
| P20/08* | 8.0 – 10.0 | 8 | 55 |
| P20/10* | 10.0 – 12.0 | 10 | 55 |
| P20/12* | 12.0 – 14.0 | 12 | 55 |
| P20/14* | 14.0 – 16.0 | 14 | 55 |
| P20/16 | 16.0 – 19.0 | 16 | 55 |
| P20/19 | 19.0 – 23.0 | 19 | 55 |
| P20/23 | 23.0 – 27.0 | 23 | 55 |
| P20/27 | 27.0 – 31.0 | 27 | 70 |
| P20/31 | 31.0 – 36.0 | 31 | 70 |
| P20/36 | 36.0 – 41.0 | 36 | 75 |
| P20/41 | 41.0 – 47.0 | 41 | 75 |
| P20/47 | 47.0 – 54.0 | 47 | 85 |
| P20/54* | 54.0 – 61.0 | 54 | 85 |

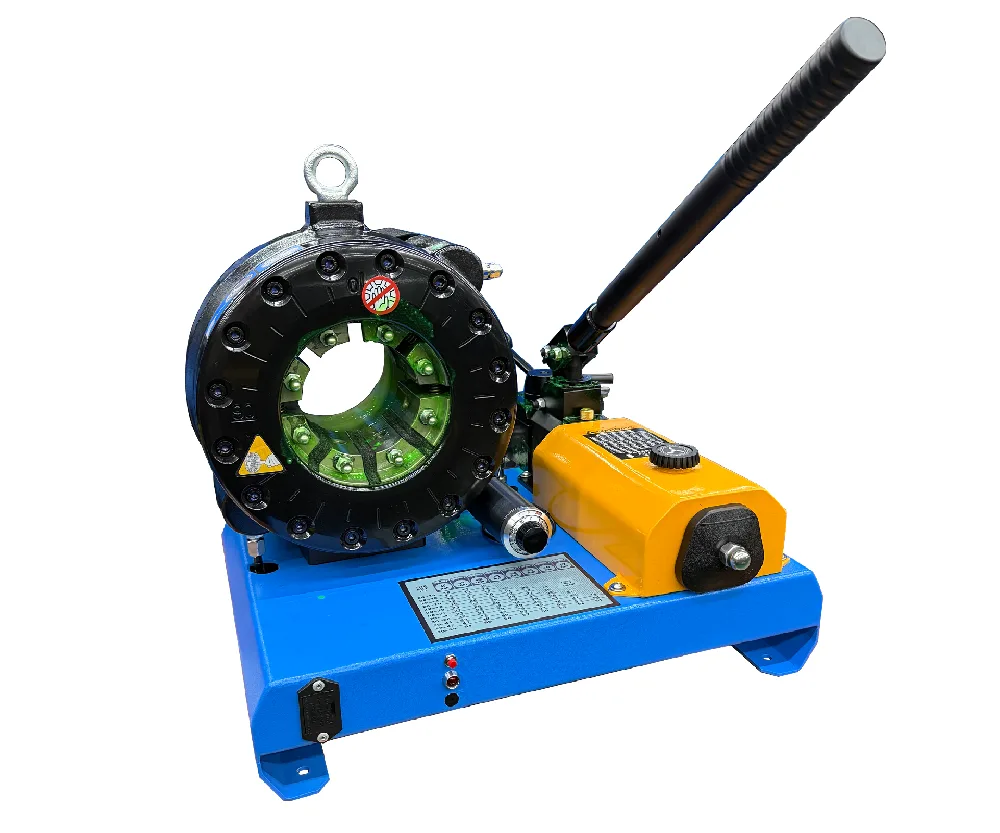

What Is the TRC-P20HP Hydraulic Crimper?
The TRC-P20HP hydraulic crimper is a manual hand pump machine that delivers serious crimping force without requiring a power outlet. At 137TON / 1370kN, it handles hose from 10mm to 61mm — up to 1-1/2″ 4-spiral — the size range common in mid-bore hydraulic systems. This hydraulic crimper is the field engineer’s choice when a full electric setup is impractical.
137TON Manual Hydraulic Crimper for Field Service
The P20HP hydraulic crimper produces the same force class as many electric workshop crimpers, but in a portable hand pump format. Twelve standard P20 dies (10–67mm) cover the full range of mid-bore field hose sizes. The 109mm max opening without dies handles oversized fittings that lighter field crimpers cannot accommodate.
Portable Hydraulic Crimper for Mobile Repair Workshops
Weighing 78kg with a 600×480×480mm footprint, the P20HP hydraulic crimper fits in service vehicles and goes where repairs happen. No electricity, no compressed air — just connect the hose and pump. The fast easy hand pump design keeps cycle time reasonable for field conditions on this hydraulic crimper.
