Portable Air Hose Crimping Tool Kit TRC-P20AP — 137TON Pneumatic Car Service | TRCrimp
The TRC-P20AP air hose crimping tool kit runs on air pressure — connect to an air pump and deliver 137TON of crimping force without electricity. Handles 10–61mm hose up to 1-1/2″ 4-spiral with 12 standard P20 dies. This air hose crimping tool kit is built for mobile mechanics and car service workshops that rely on compressed air.
Description
| Max Crimping Dia (mm/inch) | 10-61 / 0.39-2.40 |
| Crimping Force (kN/ton) | 1370 / 137 |
| Hose Size ID (inches) | 1 1/2″ |
| Dies Set Series | P20 |
| Max. Opening (mm) | +25 (109 w/o dies) |
| Master Die D/L (mm) | 84 / 80 |
| Motor Power | Air Pressure |
| Machine (mm/inch) | 600x480x480 / 23.6×18.9×18.9 |
| Package (mm/inch) | 675x630x780 / 26.6×24.8×30.7 |
| Net Weight (N.W.) | 80 KG |
| Gross Weight (G.W.) | 105 KG |
| Die Set No. | Range (mm) | ID (mm) | L (mm) |
| P20/06* | 6.0 – 8.0 | 6 | 55 |
| P20/08* | 8.0 – 10.0 | 8 | 55 |
| P20/10* | 10.0 – 12.0 | 10 | 55 |
| P20/12* | 12.0 – 14.0 | 12 | 55 |
| P20/14* | 14.0 – 16.0 | 14 | 55 |
| P20/16 | 16.0 – 19.0 | 16 | 55 |
| P20/19 | 19.0 – 23.0 | 19 | 55 |
| P20/23 | 23.0 – 27.0 | 23 | 55 |
| P20/27 | 27.0 – 31.0 | 27 | 70 |
| P20/31 | 31.0 – 36.0 | 31 | 70 |
| P20/36 | 36.0 – 41.0 | 36 | 75 |
| P20/41 | 41.0 – 47.0 | 41 | 75 |
| P20/47 | 47.0 – 54.0 | 47 | 85 |
| P20/54* | 54.0 – 61.0 | 54 | 85 |

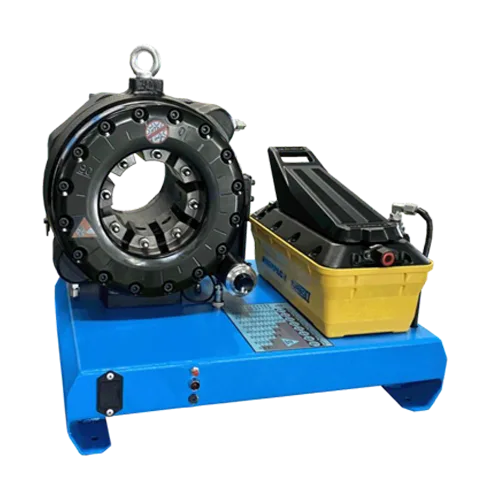

What Is the TRC-P20AP Air Hose Crimping Tool Kit?
The TRC-P20AP air hose crimping tool kit uses compressed air as its power source — no electricity, no heavy battery, just an air line. Delivering 137TON / 1370kN, it handles hose from 10mm to 61mm (1-1/2″ 4-spiral) with a 109mm max opening. The air pressure operation makes this air hose crimping tool kit ideal for mobile workshops and car service environments that already have compressed air on hand.
137TON Pneumatic Air Hose Crimping Tool Kit
The P20AP air hose crimping tool kit delivers the same 137TON force class as the electric P20HP, but powered by air. Twelve standard P20 dies (10–67mm) cover the full workshop hose range. QuickChange-tool compatibility and optional die wall rack keep the air hose crimping tool kit organized during production runs.
Mobile Air Hose Crimping Tool Kit for Car Service
At 80kg with a 600×480×480mm footprint, the P20AP air hose crimping tool kit is portable enough for mobile workshops while delivering the force needed for 1-1/2″ 4-spiral hose — the size common in car service hydraulic systems. For workshops with existing compressed air infrastructure, this air hose crimping tool kit is a practical, low-maintenance option.
