Powerful Battery Hydraulic Crimper TRC-P32CS — 200TON Cordless 2″ Hose | TRCrimp
The TRC-P32CS battery hydraulic crimper delivers 200TON / 2000kN without a power cord — the largest bore cordless crimper in the TRC range. Handles 10–87mm hose up to 2″ 4SH and 1-1/2″ 6SH with 18 standard P32 dies. This battery hydraulic crimper is the mobile workshop choice for operators who need industrial force without the power cord.
Description
| Max Crimping Dia (mm/inch) | 10-87 / 0.39-3.42 |
| Crimping Force (kN/Tonnage) | 2000 / 200 |
| Hose Size ID (inches) | 2″ (4SH) / 1 1/2″ (6SH) |
| Cycle Time 10mm / Output | 7.5s / 100 pcs/h |
| Motor Power (12V/24V) | 1.6kW (2.1HP) / 2.25kW (3.05HP) |
| Max. Opening (mm) | +33 (132 w/o dies) |
| Oil Tank Volume (L) | 4 |
| Machine (mm/inch) | 600x480x520 / 23.6×18.9×20.5 |
| Package (mm/inch) | 830x630x600 / 32.7×24.8×23.6 |
| Net Weight (N.W.) | 143 KG |
| Gross Weight (G.W.) | 178 KG |
| Die Set No. | Range (mm) | L (mm) |
| P32/10* – P32/12* | 10.0 – 14.0 | 55 |
| P32/14 – P32/16 | 14.0 – 19.0 | 55 |
| P32/19 – P32/22 | 19.0 – 26.0 | 55/70 |
| P32/26 – P32/30 | 26.0 – 34.0 | 70 |
| P32/34 – P32/39 | 34.0 – 45.0 | 75 |
| P32/45 – P32/51 | 45.0 – 57.0 | 90 |
| P32/57 – P32/63 | 57.0 – 69.0 | 100 |
| P32/69* – P32/78* | 69.0 – 87.0 | 100 |

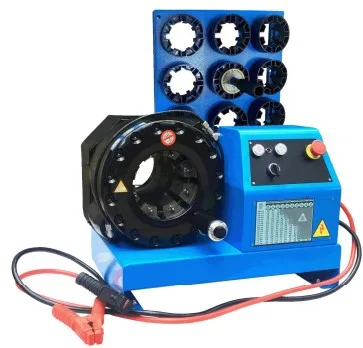

What Is the TRC-P32CS Battery Hydraulic Crimper?
The TRC-P32CS battery hydraulic crimper is the cordless solution for operators who need 200TON of industrial crimping force without being tethered to a power outlet. Handles hose from 10mm to 87mm — up to 2″ 4SH and 1-1/2″ 6SH — with 18 standard P32 dies covering the full workshop range. The 12V/24V battery system frees this battery hydraulic crimper from power constraints on any job site.
200TON Cordless Battery Hydraulic Crimper
At 200TON / 2000kN, the P32CS battery hydraulic crimper matches the force of many corded electric workshop crimpers — in a portable battery format. The 7.5-second cycle delivers 100 pieces per hour, while the 4L integrated oil tank maintains consistent hydraulic pressure across production runs. QuickChange-tool compatibility and die wall racks keep this battery hydraulic crimper organized during mobile workshop operations.
Mobile Battery Hydraulic Crimper for Car Service
Weighing 198kg with a 610×500×520mm footprint, the P32CS battery hydraulic crimper is designed for mobile workshop vehicles — transport it to the job, not the hose to the workshop. The semi-auto control with foot pedal option streamlines the workflow, and the battery system means it works anywhere without generator or AC power.
