Fast Cycle Battery Hydraulic Crimper TRC-P32CSZ — 200TON Cordless 2″ Hose | TRCrimp

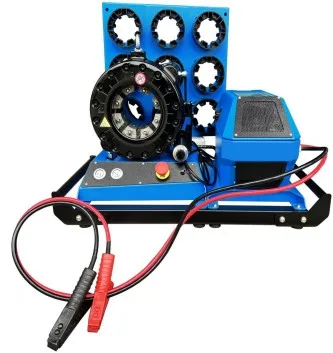

The TRC-P32CSZ battery hydraulic crimper is the Z variant of the P32CS — same 200TON force and 10–87mm range, but with an improved cycle speed for faster production in the field. Handles hose up to 2″ 4SH with 18 standard P32 dies. This battery hydraulic crimper is the mobile workshop choice when speed matters as much as cordless convenience.
Description
| Max Crimping Dia (mm/inch) | 10-87 / 0.39-3.42 |
| Crimping Force (kN/Tonnage) | 2000 / 200 |
| Hose Size ID (inches) | 2″ |
| Cycle Time 10mm / Hourly Output | 7.5s / 100 pcs |
| Motor Power (12V/24V) | 1.6kW (2.1HP) / 2.25kW (3.05HP) |
| Max. Opening (mm) | +33 (132 w/o dies) |
| Oil Tank Volume (L) | 4 |
| Machine (mm/inch) | 610x500x520 / 24×19.7×20.5 |
| Package (mm/inch) | 830x630x600 / 32.7×24.8×23.6 |
| Net Weight (N.W.) | 165 KG (Est.) |
| Gross Weight (G.W.) | 190 KG (Est.) |
| DieSetNo | Range (mm) | ID/L |
| P32/06* | P32/08* | 6.0-8.0 | 8.0-10.0 | 6/25 | 8/25 |
| P32/10* | P32/12* | 10.0-12.0 | 12.0-14.0 | 10/55 | 12/55 |
| P32/14 | P32/16 | 14.0-16.0 | 16.0-19.0 | 14/55 | 16/55 |
| P32/19 | P32/22 | 19.0-22.0 | 22.0-26.0 | 19/55 | 22/70 |
| P32/26 | P32/30 | 26.0-30.0 | 30.0-34.0 | 26/70 | 30/70 |
| P32/34 | P32/39 | 34.0-39.0 | 39.0-45.0 | 34/75 | 39/75 |
| P32/45 | P32/51 | 45.0-51.0 | 51.0-57.0 | 45/90 | 51/90 |
| P32/57 | P32/63 | 57.0-63.0 | 63.0-69.0 | 57/100 | 63/100 |
| P32/69* | P32/74* | 69.0-75.0 | 74.0-80.0 | 69/100 | 74/100 |
| P32/78* | 78.0-87.0 | 78/100 |
What Is the TRC-P32CSZ Battery Hydraulic Crimper?
The TRC-P32CSZ battery hydraulic crimper is the Z variant of the P32CS — same 200TON / 2000kN force and same 10–87mm hose range, but with a faster cycle tuned for mobile production work. Handles hose up to 2″ 4SH and 1-1/2″ 6SH. The 12V/24V battery system powers this battery hydraulic crimper anywhere without a power cord, while the improved cycle speed keeps production moving on site.
200TON Fast Cycle Battery Hydraulic Crimper
The P32CSZ battery hydraulic crimper delivers 200TON at the same 7.5-second cycle as the P32CS, but with Z-variant refinements that improve overall throughput in mobile production scenarios. Eighteen P32 dies (6–87mm) cover the full workshop range. QuickChange-tool compatibility and die wall racks keep this battery hydraulic crimper organized during field operations.
Mobile Battery Hydraulic Crimper for Workshops on the Move
Weighing 198kg with a 610×500×520mm footprint, the P32CSZ battery hydraulic crimper is built for mobile workshop vehicles — take it to the job, not the hose to the workshop. The semi-auto foot pedal option streamlines the workflow, and the 4L oil tank maintains consistent hydraulic pressure across extended crimping sessions without the battery drawing down.
