TRC-US20 Hydraulic Hose Crimpers — Open-Type 62TON Bent Pipe & 90° Joint | TRCrimp
The TRC-US20 is an open-type hydraulic hose crimpers designed for bent pipes, 90° elbow joints, and configurations standard closed-head crimpers cannot reach. Delivering 62TON / 620kN of force, it handles 10–52mm hose up to 1-1/4″ 6-spiral with a 65mm max opening. Semi-auto or manual operation makes these hydraulic hose crimpers a go-to choice for mining, field service, and industrial workshops.
Description
| Max Crimping Dia (mm/inch) | 10–52 / 0.39–2.05 |
| Max Crimping Force (kN/Ton) | 620 / 62 |
| Hose Size (Hydraulic/Industrial) | 1-1/4″ (6-Spiral) |
| Control Mode | Semi-Auto / Manual |
| Motor Power (kW/HP) | 3/4 |
| Max Opening Without Dies | 65 |
| Oil Tank Volume (L) | 5 |

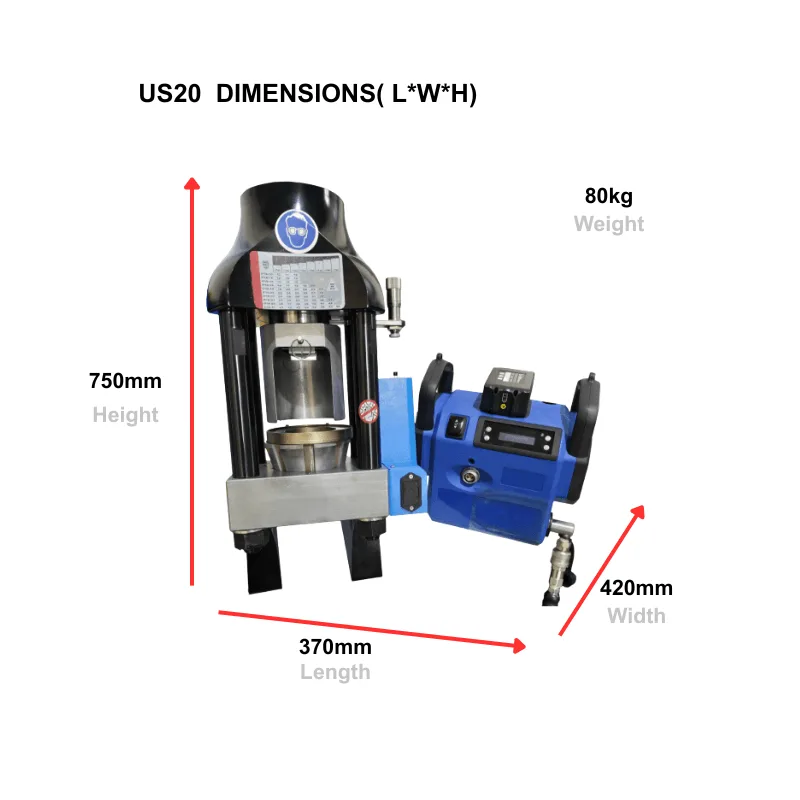

| Machine (mm/inch) | 370 × 420 × 750 / 14.6 × 16.5 × 29.5 |
| Package (mm/inch) | 480 × 430 × 800 / 18.9 × 16.9 × 31.5 |
| N.W. / G.W. | 80 / — |
| Die No. | Range (mm) |
|---|---|
| US20/10* | 10–12 |
| US20/12* | 12–14 |
| US20/14* | 14–16 |
| US20/16 | 16–19 |
| US20/19 | 19–23 |
| US20/23 | 23–27 |
| US20/27 | 27–31 |
| US20/31 | 31–36 |
| US20/36 | 36–41 |
| US20/41 | 41–47 |
| US20/47 | 47–53 |
| US20/53 | 53–59 |
| US20/59 | 59–67 |
What Is the TRC-US20 Hydraulic Hose Crimpers?
The TRC-US20 is an open-type hydraulic hose crimpers built for bent pipes, long pipe extensions, and 90° elbow fittings — the configurations that standard closed-head crimpers physically cannot handle. With 62TON / 620kN of force and 13 standard US20 dies covering 10–67mm, the US20 processes hose from 1/4″ to 1-1/4″ 6-spiral. Semi-auto mode via 3/4kW motor for workshop production, or manual pump for field service — no electricity required.
Open-Type Hydraulic Hose Crimpers for Bent Pipes
The open head design is what sets these hydraulic hose crimpers apart. Horizontal adjustment lets the plunger reach into bent pipes, flanged fittings, and 90° elbow joints that a closed-head machine cannot access. The 65mm max opening (no dies) handles oversized fittings and complex geometries common in mining equipment and marine hydraulic systems.
Semi-Auto and Manual Modes on These Hydraulic Hose Crimpers
US20 hydraulic hose crimpers operate in semi-auto mode (3/4kW motor) for consistent workshop production, or switch to manual pump mode for field jobs without power. The 5L integrated oil tank keeps hydraulic pressure stable throughout the workday. Die rubber sleeves come standard — protecting fitting surfaces during every crimp.
13 Standard Dies for Every Hose Size
These hydraulic hose crimpers use the US20 die series — 13 sizes from US20/10* (10–12mm) to US20/59* (59–67mm). Quick-change die system minimizes downtime when switching between hose sizes during production runs.
Applications for the TRC-US20 Hydraulic Hose Crimpers
These open-type hydraulic hose crimpers are built for:
- Mining equipment hydraulic hose repair and assembly
- Field service with bent pipe fittings
- 90° elbow joint hose connections
- Marine and offshore hydraulic systems
- Industrial workshops with complex piping layouts
