95 Ton Hand Pump Hydraulic Hose Crimper P16HP | TRCrimp

The TRC-P16HP 95 ton hand pump hydraulic hose crimper crimps up to 1\” 2SP hose with hand pump operation. 34 kg, telescopic operating pole saves about 30% effort. 10 P16 die sizes, 7 included.

Category:

Description

Technical Data
Max Crimping Dia (mm / inch) 10–45 / 0.39–1.77
Max Crimping Force (kN / Ton) 950 / 95
Hose Size ID (inches) 1″ 2SP
Die Series P16
Max Opening Without Dies (mm) 59
Master Die D/L (mm) 39 / 64
Cycle Time (s) 10
Max Opening (mm) +20
Dimensions (L × W × H)

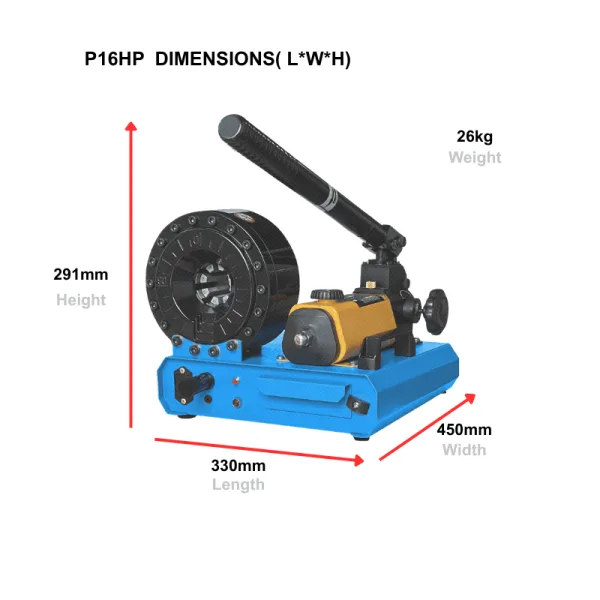

Machine (mm / inch) 330×450×291 / 13×17.7×11.5
Package (mm / inch) 475×430×410 / 18.7×16.9×16.1
Weight (KG)
G.W. 34

The TRC-P16HP 95 ton hand pump hydraulic hose crimper is designed for repair workshops and field use. Hand pump operated — no electricity needed. At 34 kg with a compact 330×450mm footprint, one person can carry it to any location. The telescopic operating pole saves about 30% of pumping effort.

The P16 die series covers crimping from 10mm to 45mm with 10 die sizes. Three dies (P16/08, P16/10, P16/12) require separate purchase; the remaining 7 are included with the machine. The 10-second cycle time and +20mm max opening handle standard hydraulic fittings efficiently.

For larger hoses up to 1¼″, see the P18HP (110 ton). For the separate pump version, see the P16HPZ. For pneumatic operation, the P16AP uses an air-powered pump.
