200 Ton Fast Cycle Станок для опрессовки РВД P32ES | TRCrimp

描述

The TRC-P32ES 200 ton fast cycle hydraulic hose crimper is designed to crimp up to 2″ diameter 4-spiral hoses. The operating height is very ergonomic, fast and easy to use — the tri-phase motor completes a 10mm stroke in 3.3 seconds, the quickest cycle in the P32 series.

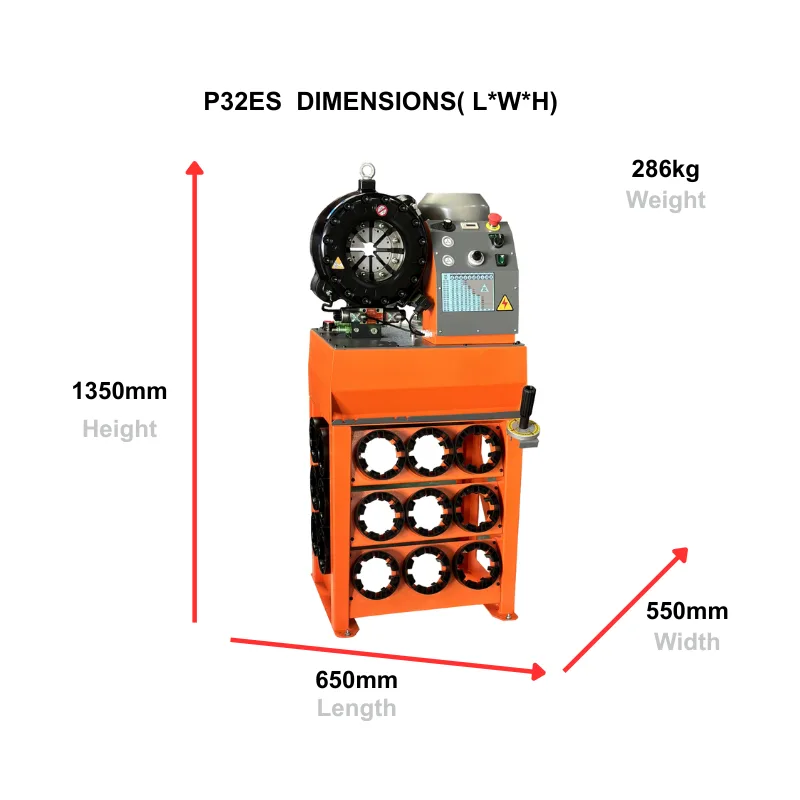

Semi-automatic operation with foot pedal keeps both hands free for hose positioning. The 650×550mm footprint matches the P32E but the P32ES adds auto return and a wider die range — 19 P32 dies covering 6mm to 87mm ID. Thirteen dies ship standard (sizes 14–63), six optional sizes available.

Dual 50/60 Hz Двигатель runs on both single-phase and three-phase Мощность. The 32-liter Масляный бак and 3.7 kW tri-phase Двигатель deliver 700 to 850 опрессовок в час. стандарт оборудование includes QuickChange инструмент, die racks, and Ножная педаль.
