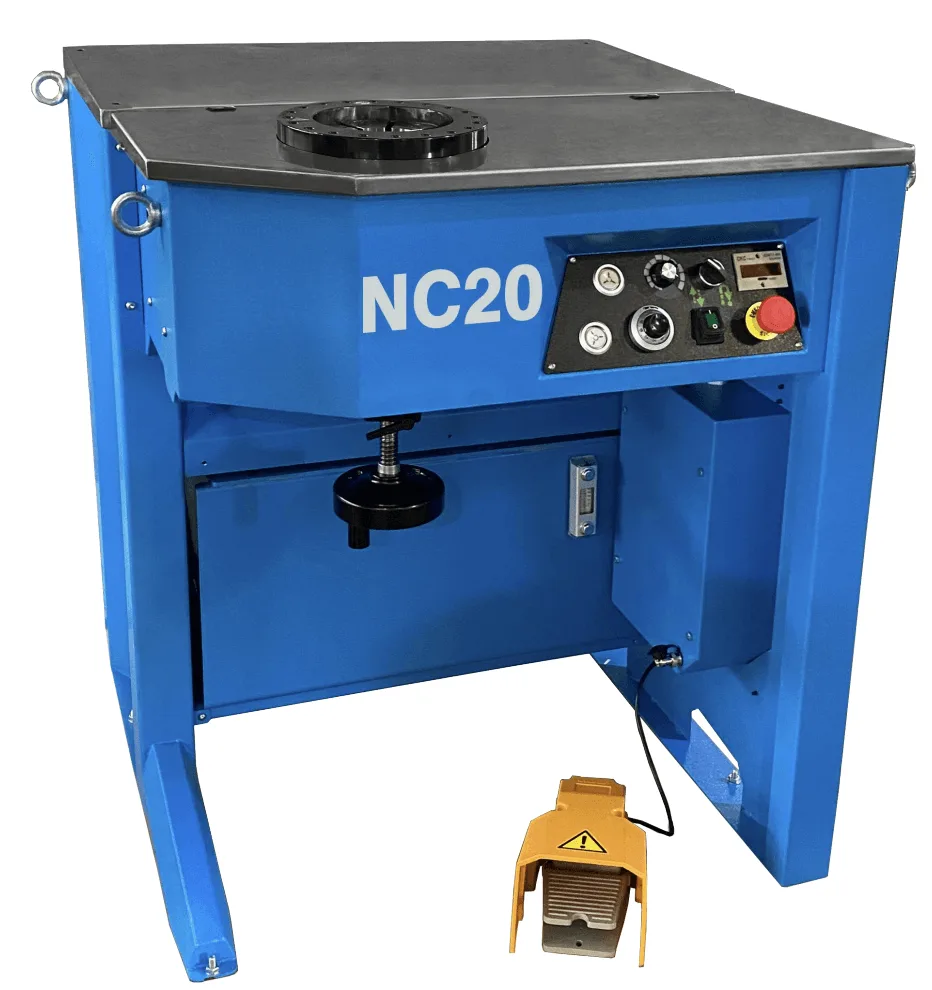

Description
Technical Data
| Performance Parameters |
Specs |
| Max. Crimping Dia (mm/inch) |
49 / 1.93″ |
| Max. Crimping Force (kN/T) |
500 / 50 |
| Hose Size ID (Inches) |
1 1/4″ |
| Die Set Series |
NC20 |
| Motor Power (kW/HP) |
3.0 / 4.0 |
| Voltage (Tri / Mono) |
380V / 220V |
Dimensions (L x W x H)
| Machine (mm/inch) |
820x750x1030 / 32.3×29.5×40.6 |
| Package (mm/inch) |
925x925x1220 / 36.4×36.4×48.0 |
Weight Specifications
| Net Weight (N.W.) |
185 KG |
| Gross Weight (G.W.) |
215 KG |
NC30 Die Sets
| Die Set No. |
Range (mm) |
L (mm) |
| NC30/12 |
12.0 – 16.0 |
3 |
| NC30/16 |
16.0 – 22.0 |
4 |
| NC30/22 |
22.0 – 26.0 |
4.5 |
| NC30/26 |
26.0 – 34.0 |
5 |
| NC30/34 |
34.0 – 39.0 |
5 |
| NC30/39 |
39.0 – 49.0 |
5 |
*: Supports non-standard custom die sets.
Established in 2021, TRC has rapidly positioned itself as a premier provider of high-performance Pipe Hydraulic Machines. Our versatile product lineup features both manual and automatic models, engineered to deliver precision and a powerful 137-ton crimping force for demanding industrial applications.
As a quality-centric manufacturer with SGS and CE certifications, TRC ensures that all equipment meets the most rigorous international safety and performance standards. We are dedicated to supporting our clients with comprehensive OEM/ODM customization services, tailored to specific technical requirements. Serving a global B2B market across North America, Europe, and the Middle East, TRC is the trusted partner for procurement managers, overseas agents, and logistics and warehousing decision-makers. We combine industry leadership with innovative engineering to empower your infrastructure projects worldwide.
